7Ah
12Ah
| Rated Capacity | 7Ah | 12Ah |
|---|---|---|
| Type | Na | Na |
| Volume Energy Density | 107Wh/kg | 114Wh/kg |
| Max. Continuous Charge Rate | 15C | 8C |
| Max. Continuous Discharge Rate | 25C | 25C |
| RT cycle | ≥3000cycles | ≥2000cycles |

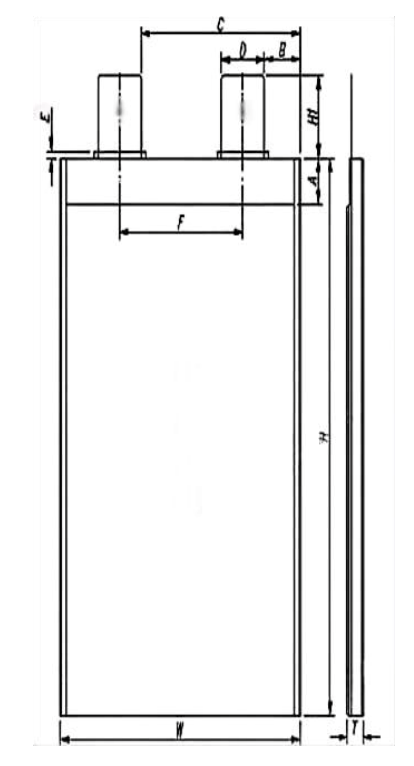

| Dimension | 190*82*7mm | 140*146*11.5mm |
| Weight | 193 ± 5g | 325±10g |
| Item | parameter |
|---|---|
| Nominal voltage | 12.4 (V) |
| Nominal Capacity | 36 (Ah) |
| Energy | 446.4 (Wh) |
| Cycle Life | ≥2000 (cyc) |
| CCA | 900 (A) |
| Months Self Discharge | ≤3% |
| Charge Voltage | 14.6 (V) |
| Standard charging current | 36 (A) |
| Max. Charge Current | 72 (A) |
| Continuous Current | 120 (A) |
| Max. Pulse Current | 500 (A) |
| Charge Temperature | -10℃~60℃ |
| Discharge Temperature | -20℃~45℃ |
| Storage Temperature | -20℃~45℃ |
| IP Rating | IP67 |
| Dimension | 244*175*189mm |
| Weight | 6.2kg |
|
No. |
Item |
Parameter |
Remarks |
|---|---|---|---|
|
1 |
Cell |
NA-12Ah |
|
|
2 |
Configuration |
2P8S |
|
|
3 |
Nominal Voltage |
24.8V |
|
|
4 |
Voltage Range |
16V~29.2V |
|
|
5 |
Nominal Capacity |
24Ah |
|
|
6 |
Nominal Energy |
0.576kWh |
|
|
7 |
Max. Continuous Charge Current |
192A |
@25℃ |
|
8 |
Max. Continuous Discharge Current |
600A |
@25℃，10C |
|
9 |
Peak Discharge Current |
1200A@10S |
@25℃ |
|
10 |
Cycle Life |
≧2000 |
@25℃ |
|
11 |
Dimensions |
250mm*300mm*160mm |
|
|
12 |
Weight |
8kg |
|
|
13 |
Temperature Range |
Charge：-10℃~60℃ Discharge：-40℃~60℃ |
|
|

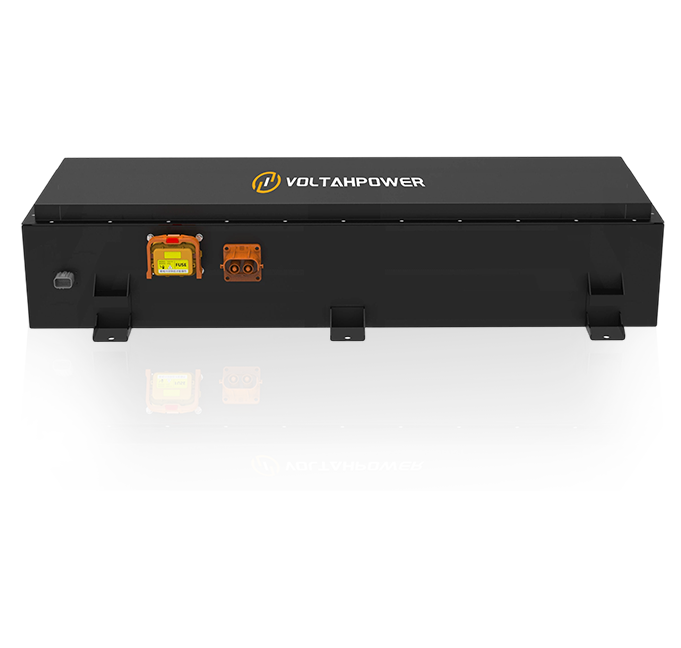

No. |
Item |
Parameter |
Remarks |
|---|---|---|---|
|
1 |
Cell |
NA-12Ah |
|
|
2 |
Configuration |
2P16S |
|
|
3 |
Nominal Voltage |
49.6V |
|
|
4 |
Voltage Range |
32V~58.4V |
|
|
5 |
Nominal Capacity |
24Ah |
|
|
6 |
Nominal Energy |
1.2kWh |
|
|
7 |
Max. Continuous Charge Current |
36A |
@25℃ |
|
8 |
Max. Continuous Discharge Current |
120A |
@25℃，10C |
|
9 |
Peak Discharge Current |
500A@10S |
@25℃ |
|
10 |
Cycle Life |
≧2000 |
@25℃ |
|
11 |
Dimensions |
320mm*300mm*160mm |
|
|
12 |
Weight |
15kg |
|
|
13 |
Temperature Range |
Charge：-10℃~60℃ Discharge：-40℃~60℃ |
|
