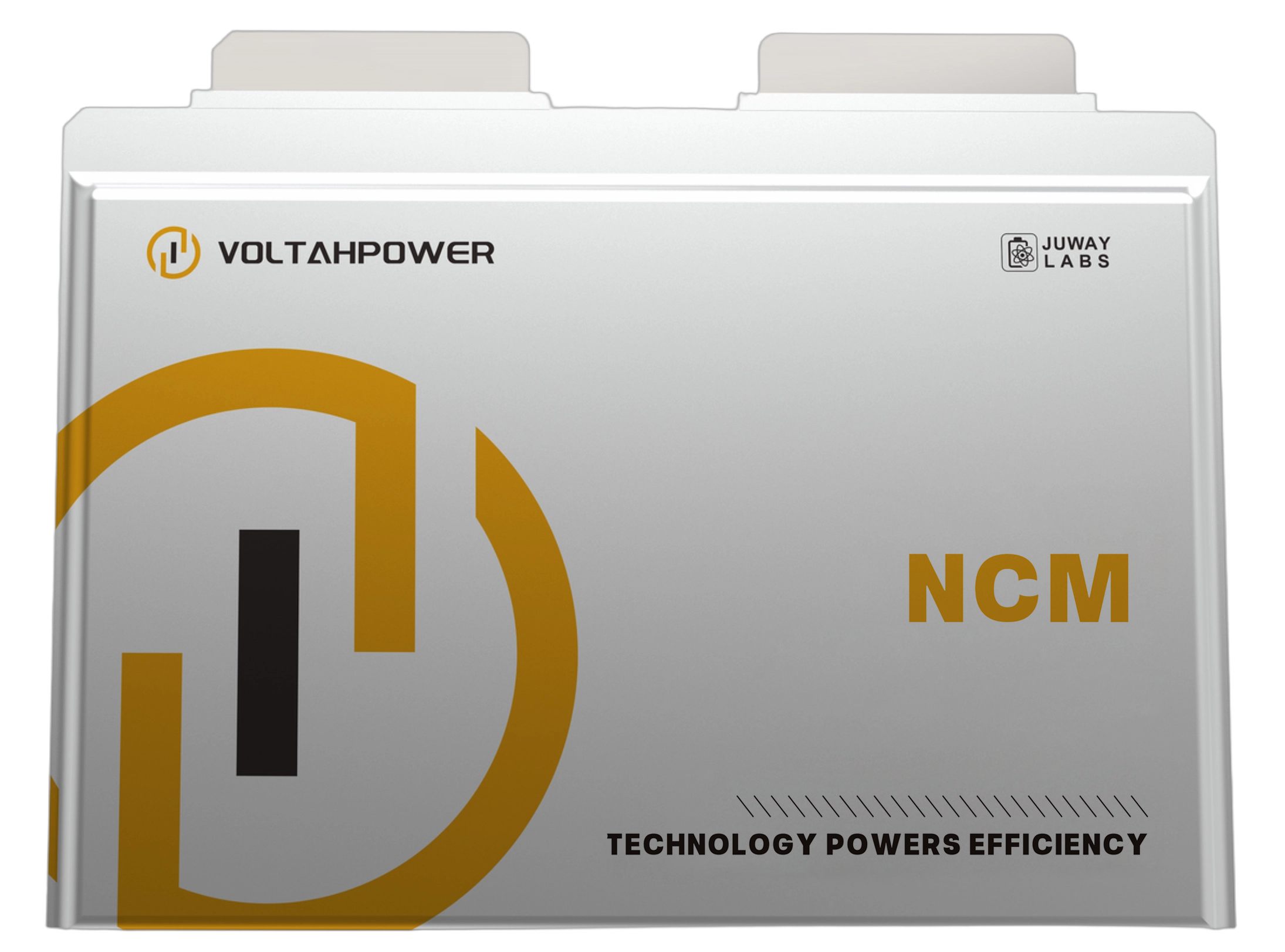

| Rated Capacity | 19Ah | 53.5Ah |
|---|---|---|
| Type | NCM | NCM |
| Volume Energy Density | 380wh/L | 530wh/L |
| Continuous Charge Rate | 3C | 1C |
| Continuous Discharge Rate | 3C | 2C |
| RT cycle | ≥7000cycles | ≥5000cycles |

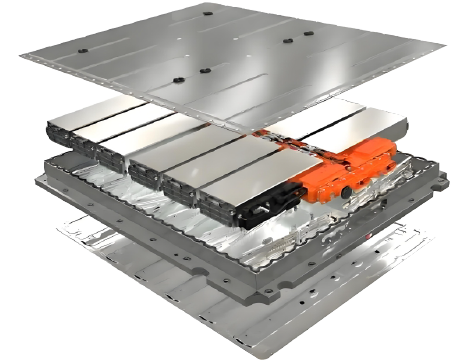

Dual-side cooling for uniform temperature across the pack
Extended cycle life with consistent thermal control
Stable performance in high-temperature or heavy-load conditions
Supports high-rate charging with efficient heat dissipation
| Rated Capacity | 19Ah | 53.5Ah |
|---|---|---|
| Type | NCM | NCM |
| Volume Energy Density | 380wh/L | 530wh/L |
| Continuous Charge Rate | 3C | 1C |
| Continuous Discharge Rate | 3C | 2C |
| RT cycle | ≥7000cycles | ≥5000cycles |

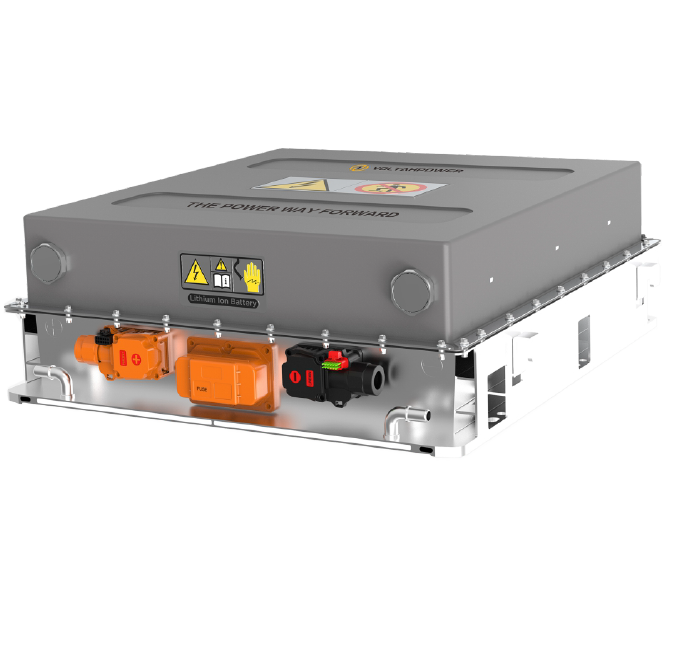

| Item | Model | Cell | Rated Energy | Rated Voltage | Voltage Range | Max. Cont. Charging Power |
Peak Charging Power |
Max. Cont. Discharging Power |
Peak Discharging Power |
RT cycle |
|---|---|---|---|---|---|---|---|---|---|---|
| Parameters | B/19-58 | 19Ah | 19.4Kwh | 340.4V | 248.4~386.4V | 58.2084Kw | 155.2224Kw | 58.2084Kw | 170.2Kw | ≥7000cycles |
| Parameters | B/27-25 | 53.5Ah | 27.713Kwh | 103.6V | 75.6~117.6V | 25.9Kw | 51.8Kw | 25.9Kw | 51.8Kw | ≥5000cycles |
| Parameters | B/28-33 | 53.5Ah | 28.5048Kwh | 133.2V | 97.2~151.2V | 33.3Kw | 66.6Kw | 33.3Kw | 66.6Kw | ≥5000cycles |
| Parameters | B/28-42 | 53.5Ah | 28.5048Kwh | 266.4V | 194.4302.4V | 42.7572Kw | 133.2Kw | 42.7572Kw | 133.2Kw | ≥5000cycles |
