| Name | Material | Type | Dimensions (mm) | Voltage Range (V) | Rated Voltage (V) | Rated Capacity (Ah) | Weight (g) | Energy Density (Wh/kg) | Maximum Continuous Charging Current (A) | Maximum Continuous Discharging Current (A) | Normal Temperature Cycle Life @25℃, 80% SOH/EOL | Operating Temperature (℃) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4Ah | NCM |
|

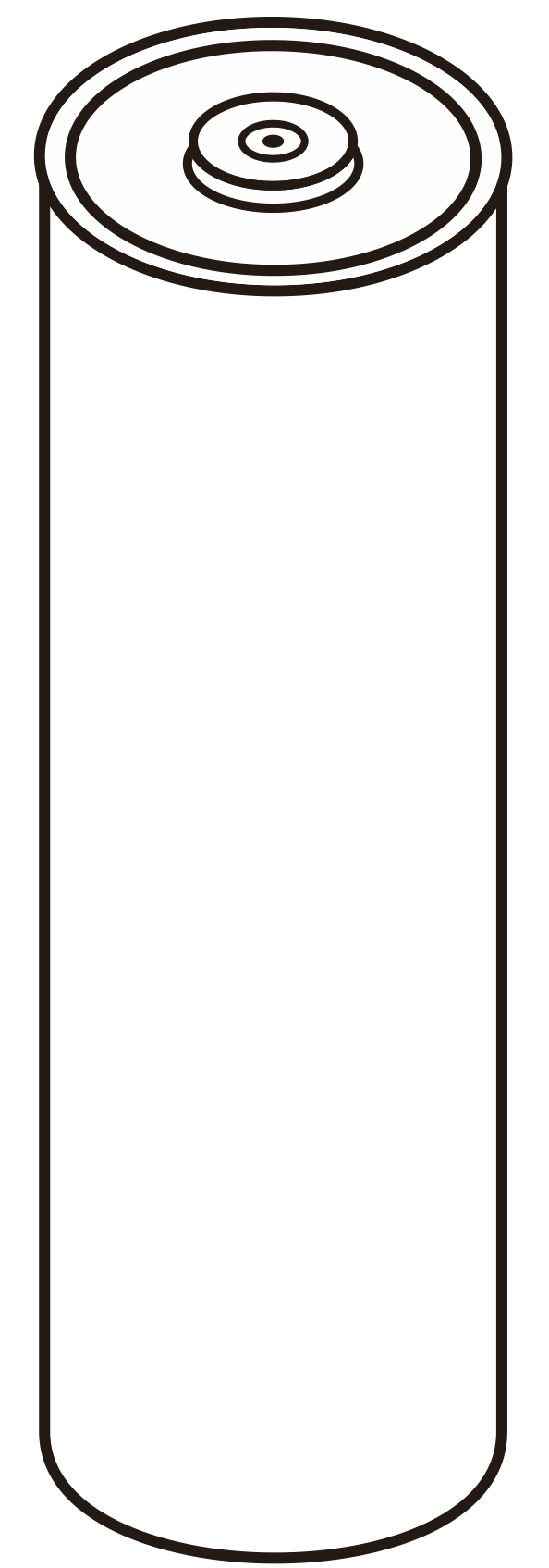

Height=70.15mm Diameter=21.15mm |
2.5~4.2 | 3.6 | 4 | 70 | ≥206 | 1.5C | 12.5C | ≥300 cycles | -20 to 60 |
| 5Ah | NCM |
|
Height=70.15mm Diameter=21.15mm |
2.5~4.2 | 3.65 | 5 | 71 | ≥257 | 1C | 3C | ≥1000 cycles | -20 to 60 |
| 5.2Ah | NCM |  |
206 x 85 x 4.65 | 2.7~4.2 | 3.682 | 5.2 | 157.5 | ≥118 | 10C | 20C | ≥35000 cycles | -35 to 60 |
| 19Ah | NCM |  |
211 x 128 x 7.15 | 2.7~4.2 | 3.7 | 19 | 363 | ≥204 | 3C | 3C | ≥7000 cycles | -20 to 55 |
| 21Ah | NCM | |
220 x 127 x 7.1 | 2.7~4.2 | 3.7 | 21 | 348 | ≥223 | 2C | 3C | ≥7000 cycles | -20 to 55 |
| 48Ah | NCM | |
290 × 204 × 7.0 | 2.7~4.2 | 3.7 | 48 | 840 | ≥205 | 3C | 3C | ≥5000 cycles | -20 to 55 |
| 53.5Ah | NCM | |
290 × 204 × 7.0 | 2.7~4.2 | 3.7 | 53.5 | 840 | ≥235 | 1C | 2C | ≥5000 cycles | -20 to 55 |
| 55Ah | NCM | |
290 × 204 × 7.0 | 2.7~4.2 | 3.7 | 55 | 840 | ≥233 | 3C | 3C | ≥7000 cycles | -20 to 55 |
