| Rated | Material | Type | Volume Energy Density |
Continuous Charge Rate |
Continuous Discharge Rate |
RT cycle | Dimension | Weight |
|---|---|---|---|---|---|---|---|---|

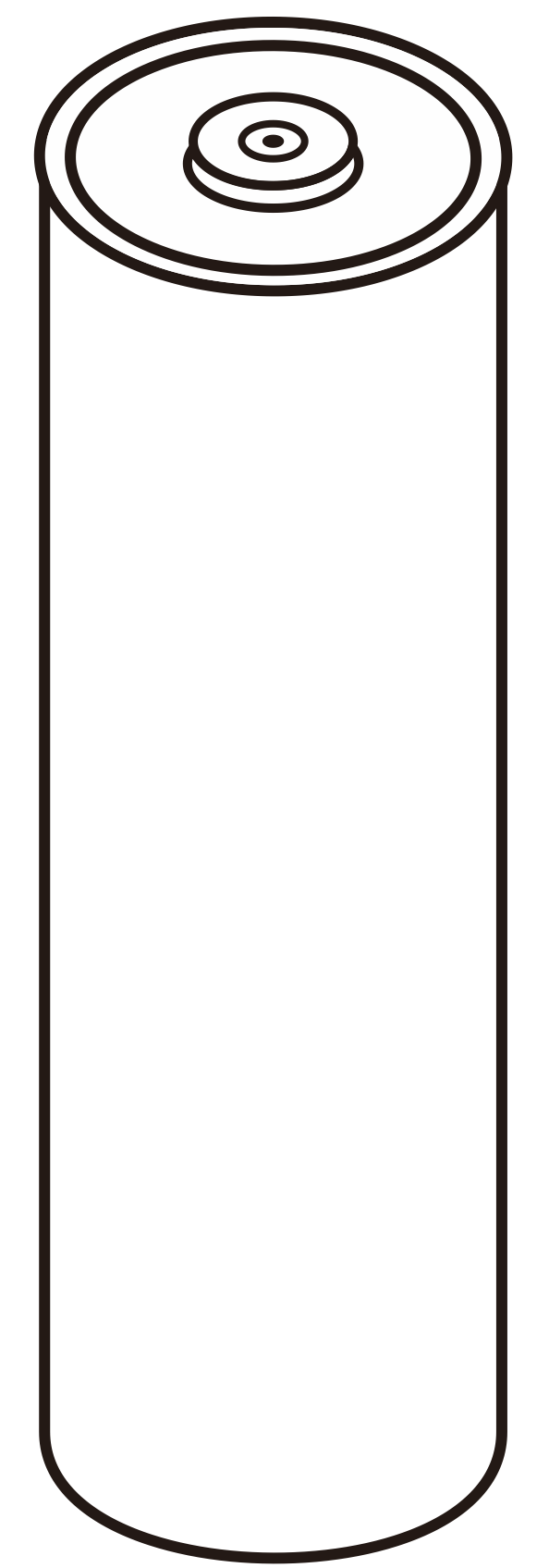

| 20Ah | LFP |  |
364wh/L | 1C | 1C | ≥4000cycles | ϕ40.4 × 137.1 | 0.368kg |

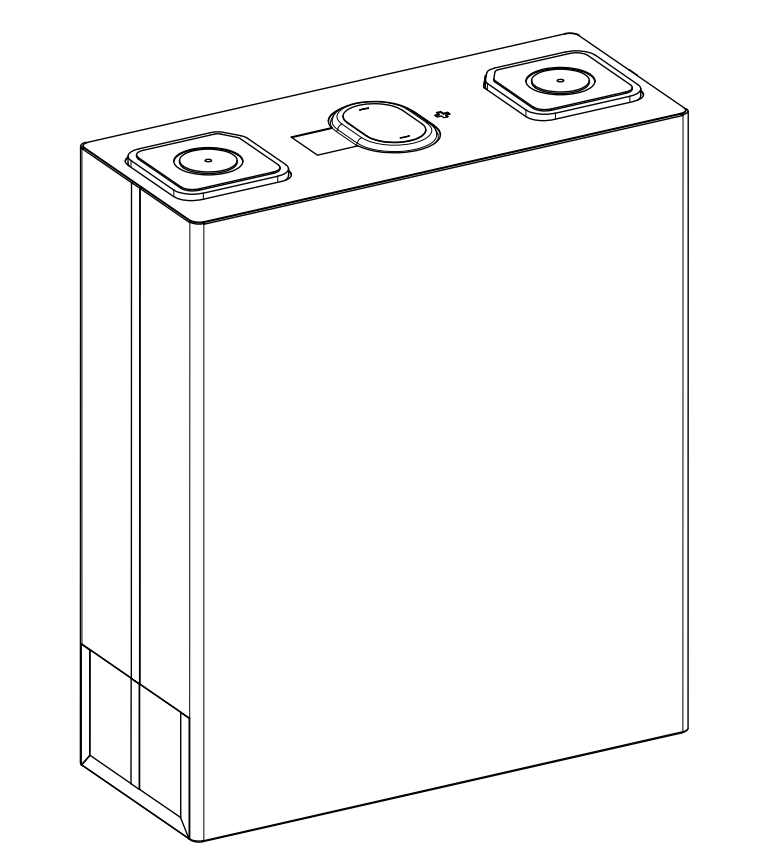

| 100Ah | LFP |  |
329wh/L | 1C | 1C | ≥4000cycles | 207*174*27 | 2.05±0.1kg |
| 150Ah | LFP | |
189wh/L | 1C | 1C | ≥3000cycles | 207*174*36 | 2.80±0.08kg |
| 230Ah | LFP | |
380wh/L | 1C | 1C | ≥6000cycles | 207*174*54 | 4.19±0.1kg |
| 280Ah | LFP | |
352Wh/L | 1C | 1C | ≥8000cycles | 207*174*71 | 5.4kg±0.2kg |
| 306Ah | LFP | |
392Wh/L | 1C | 1C | ≥3000cycles | 207*174*71 | 5.55±0.2kg |
| 314Ah | LFP | |
394Wh/L | 1C | 1C | ≥8000cycles | 207*174*71 | 5.78±0.2kg |
| 324Ah | LFP | |
410wh/L | 1C | 1C | ≥3500cycles | 207*174*71 | 5.55±0.15Kg |
| 340Ah | LFP | |
410wh/L | 1C | 1C | ≥8000cycles | 207*174*71 | 5.68±0.15Kg |
