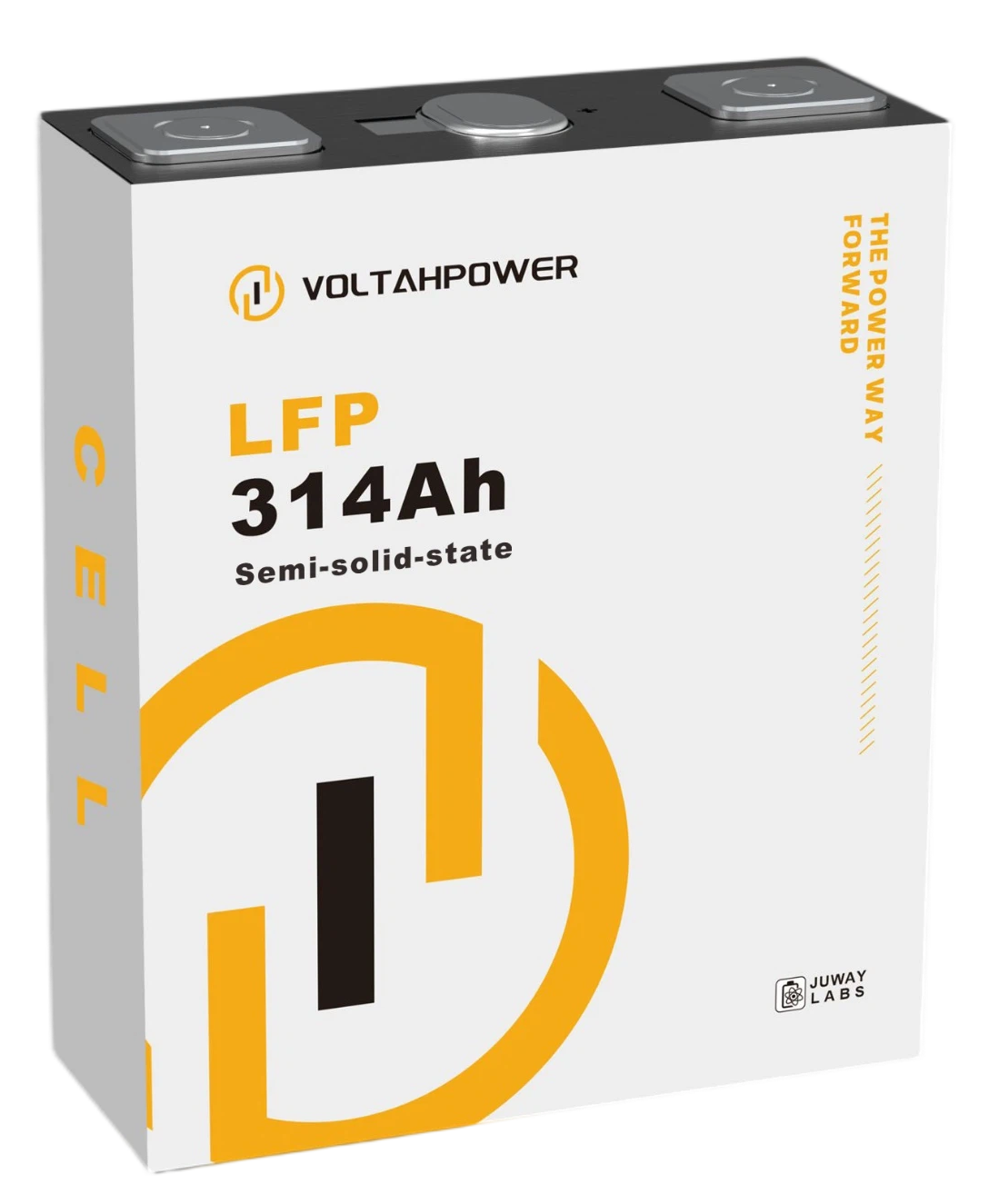

| Rated Capacity | 314Ah |
|---|---|
| Type | LFP（semi-solid） |
| Nominal Voltage | 3.2V |
| Volume Energy Density | ≥385Wh/L |
| Energy Efficiency | ≥94.5% |
| ACIR | ≤0.20mΩ |
| DCIR | 0.4±0.1mΩ |
| RT cycle | ≥8000 |
| Dimension | 174*207*71mm |
| Weight | 5.6±0.2kg |
Fast Charging & High Efficiency
1-2h quick charge, higher energy density, no maintenance required.
Ultra-Long Lifespan
Over 4000 cycles, 3-4x longer than lead-acid batteries, low replacement cost.
Smart BMS
ProtectionReal-time monitoring, optimized charge/discharge, optional custom communication.
Flexible & Customizable Solutions
24V/36V/48V/80V options, Grade A LiFePO4 cells, OEM/ODM supported.
| Rated Capacity | 314Ah |
|---|---|
| Type | LFP（semi-solid） |
| Nominal Voltage | 3.2V |
| Volume Energy Density | ≥385Wh/L |
| Energy Efficiency | ≥94.5% |
| ACIR | ≤0.20mΩ |
| DCIR | 0.4±0.1mΩ |
| RT cycle | ≥8000 |
| Dimension | 174*207*71mm |
| Weight | 5.6±0.2kg |
12V Serial
|
No. |
Item |
Parameter |
Remarks |
|---|---|---|---|
|
1 |
Cell |
LFP-314Ah |
|
|
2 |
Configuration |
1P4S |
Support series and parallel connection of multiple battery packs. |
|
3 |
Rated Voltage (V) |
12.8V |
|
|
4 |
Operating Voltage Range (V) |
10V～14.6V |
|
|
5 |
Rated Capacity (Ah) |
314Ah |
@25℃，1C |
|
6 |
Rated Energy (kWh) |
4.02kWh |
|
|
7 |
Max. Continuous Charging Current (A) |
200A |
@25℃ |
|
9 |
Max. Continuous Discharging Current (A) |
200A |
@25℃ |
|
10 |
Peak Discharging Current (A) |
400A |
@10S，50%SOC,25℃ |
|
11 |
Cycle Life |
≥ 8000 Cell (70%SOH) |
@25℃ |
|
12 |
Dimensions |
384*190*245(mm) |
|
|
13 |
Weight |
25.5kg |
|
|
14 |
Operating Temperature |
Charging :0℃~60℃ Discharging :-30℃~60℃ |
|
|
15 |
Communication |
CAN,485,VICTRON |
|
24V Serial
|
No. |
Item |
Parameter |
Remarks |
|---|---|---|---|
|
1 |
Cell |
LFP-314Ah |
|
|
2 |
Configuration |
1P8S |
Support series and parallel connection of multiple battery packs. |
|
3 |
Rated Voltage (V) |
25.6V |
|
|
4 |
Operating Voltage Range (V) |
20V～29.2V |
|
|
5 |
Rated Capacity (Ah) |
314Ah |
@25℃，1C |
|
6 |
Rated Energy (kWh) |
8.04kWh |
|
|
7 |
Max. Continuous Charging Current (A) |
200A |
@25℃ |
|
9 |
Max. Continuous Discharging Current (A) |
200A |
@25℃ |
|
10 |
Peak Discharging Current (A) |
400A |
@10S，50%SOC,25℃ |
|
11 |
Cycle Life |
≥ 8000 Cell (70%SOH) |
@25℃ |
|
12 |
Dimensions |
522*365*232(mm) |
|
|
13 |
Weight |
50kg |
|
|
14 |
Operating Temperature |
Charging :0℃~60℃ Discharging :-30℃~60℃ |
|
|
15 |
Communication |
CAN,485,VICTRON |
|
|
No. |
Item |
Parameter |
Remarks |
|---|---|---|---|
|
1 |
Cell |
LFP-314Ah |
|
|
2 |
Configuration |
1P8S |
Support series and parallel connection of multiple battery packs. |
|
3 |
Rated Voltage (V) |
25.6V |
|
|
4 |
Operating Voltage Range (V) |
20V～29.2V |
|
|
5 |
Rated Capacity (Ah) |
314Ah |
@25℃，1C |
|
6 |
Rated Energy (kWh) |
8.04kWh |
|
|
7 |
Max. Continuous Charging Current (A) |
200A |
@25℃ |
|
9 |
Max. Continuous Discharging Current (A) |
200A |
@25℃ |
|
10 |
Peak Discharging Current (A) |
400A |
@10S，50%SOC,25℃ |
|
11 |
Cycle Life |
≥ 8000 Cell (70%SOH) |
@25℃ |
|
12 |
Dimensions |
424*398*250(mm) |
|
|
13 |
Weight |
55kg |
|
|
14 |
Operating Temperature |
Charging :0℃~60℃ Discharging :-30℃~60℃ |
|
|
15 |
Communication |
CAN,485,VICTRON |
|
