20Ah

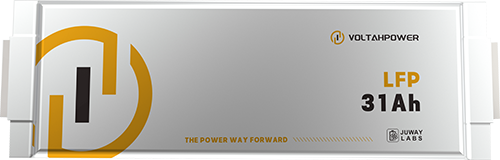

31Ah
| Rated Capacity | 20Ah | 31Ah |
|---|---|---|
| Type | LFP | LFP |
| Volume Energy Density | 365wh/L | 315wh/L |
| Continuous Charge Rate | 1C | 1C |
| Continuous Discharge Rate | 1C | 1C |
| RT cycle | ≥4000cycles | ≥4500cycles |

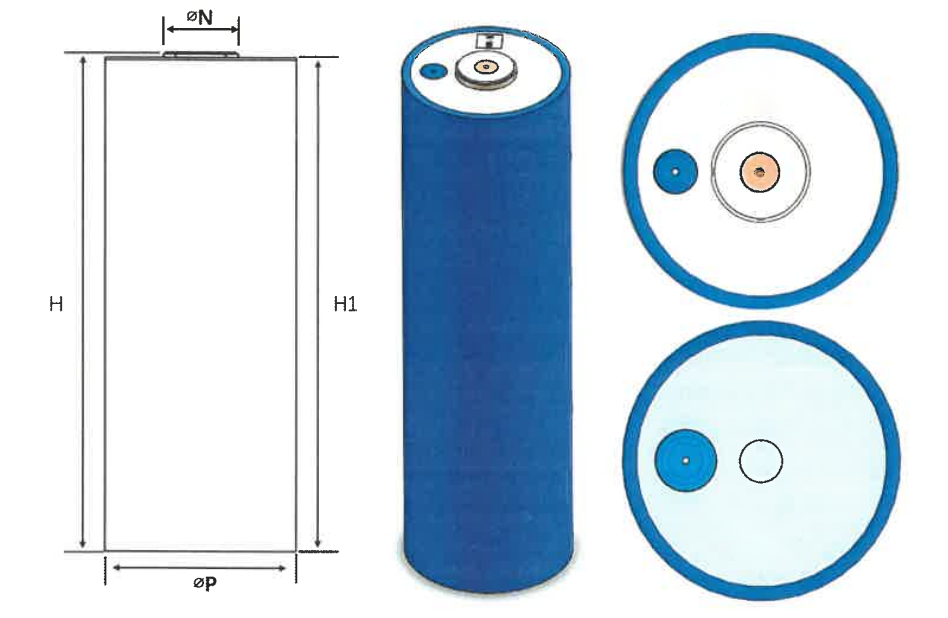

| Dimension | H=137mm, Φ=40.4mm | 309*103*9.9mm |
| Weight | 368 ± 8g | 625g ± 10g |

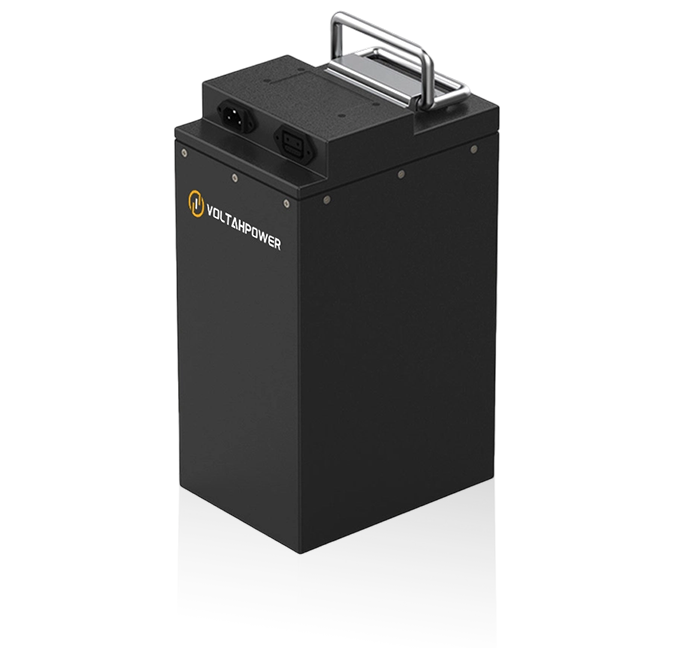

Two-wheeler battery pack
| Name | LL1P20S-20 |
|---|---|
| Cell | 3.2V/20Ah |
| Configuration | 1P20S |
| Rated Energy | 1.28kWh |
| Capacity | 20Ah |
| Rated Voltage | 64V |
| Voltage Range | 50V~73V |
| Charging Current | 10A |
| Max. Charging Current | 40A |
| Discharging Current | 10A |
| Max. Discharging Current | 40A |
| Rated Power | 0.64kW |
| Peak Power | 2.56kW |
| RT cycle | ≥4000cycles |
| Dimension | 241*188*160mm |
| Weight | 9.75kg |
Three-wheeler battery pack
| Name | SL1P20S-31 | SL3P23S-93 |
|---|---|---|
| Cell | 3.2V/31Ah | 3.2V/31Ah |
| Configuration | 1P20S | 3P23S |
| Rated Energy | 1.984kWh | 6.845kWh |
| Capacity | 31Ah | 93Ah |
| Rated Voltage | 64V | 73.6V |
| Voltage Range | 50V~73V | 57.5V~83.5V |
| Charging Current | 31A | 93A |
| Max. Charging Current | 62A | 186A |
| Discharging Current | 31A | 93A |
| Max. Discharging Current | 186A | 558A |
| Rated Power | 1.984kW | 6.8448kW |
| Peak Power | 11.904kW | 41.0688kW |
| RT cycle | ≥4500cycles | ≥4500cycles |
| Dimension | 260*320*150mm | 450*360*280mm |
| Weight | 16.25kg | 56kg |
| Name | SL1P20S-20 | SL1P23S-20 | SL3P20S-60 | SL3P23S-60 |
|---|---|---|---|---|
| Cell | 3.2V/20Ah | 3.2V/20Ah | 3.2V/20Ah | 3.2V/20Ah |
| Configuration | 1P20S | 1P23S | 3P20S | 3P23S |
| Rated Energy | 1.28kWh | 1.472kWh | 3.84kWh | 4.416kWh |
| Capacity | 20Ah | 20Ah | 60Ah | 60Ah |
| Rated Voltage | 64V | 73.6V | 64V | 73.6V |
| Voltage Range | 50V~73V | 57.5V~83.5V | 50V~73V | 57.5V~83.5V |
| Charging Current | 10A | 10A | 30A | 30A |
| Max. Charging Current | 40A | 40A | 120A | 120A |
| Discharging Current | 10A | 10A | 30A | 30A |
| Max. Discharging Current | 40A | 40A | 120A | 120A |
| Rated Power | 0.64kW | 0.736kW | 1.92kW | 2.208kW |
| Peak Power | 2.56kW | 2.944kW | 7.68kW | 8.832kW |
| RT cycle | ≥4000cycles | ≥4000cycles | ≥4000cycles | ≥4000cycles |
| Dimension | 260*200*150mm | 310*230*160mm | 550*220*170mm | 550*300*160mm |
| Weight | 9.75kg | 11kg | 28.7kg | 33kg |
