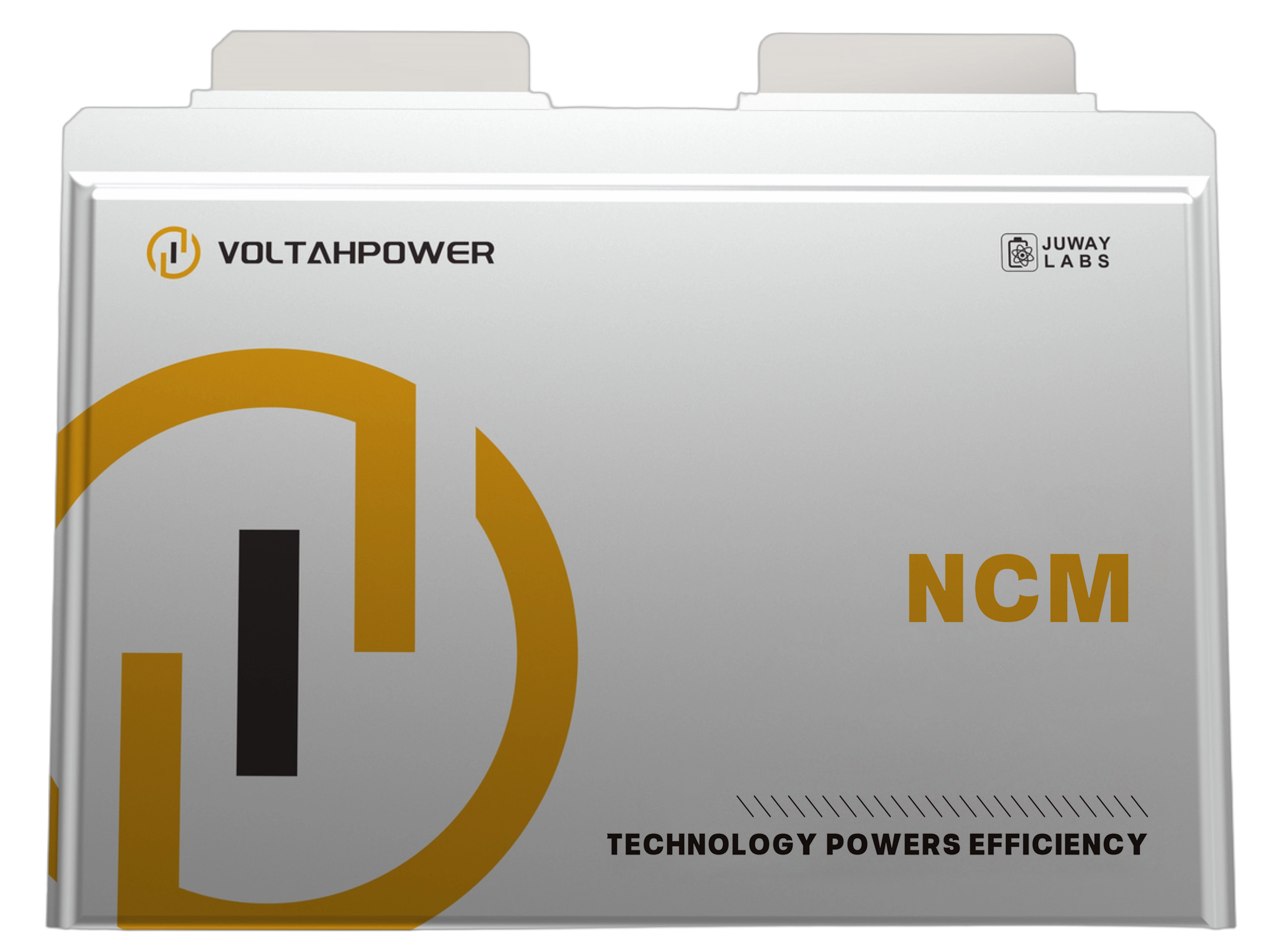

| Rated Capacity | 19Ah | 53.5Ah |
|---|---|---|
| Type | NCM | NCM |
| Volume Energy Density | 380wh/L | 530wh/L |
| Continuous Charge Rate | 3C | 1C |
| Continuous Discharge Rate | 3C | 2C |
| RT cycle | ≥7000cycles | ≥5000cycles |

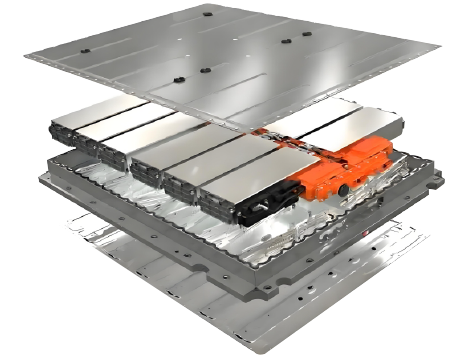

Dual-side cooling for uniform temperature across the pack
Extended cycle life with consistent thermal control
Stable performance in high-temperature or heavy-load conditions
Supports high-rate charging with efficient heat dissipation
| Rated Capacity | 19Ah | 53.5Ah |
|---|---|---|
| Type | NCM | NCM |
| Volume Energy Density | 380wh/L | 530wh/L |
| Continuous Charge Rate | 3C | 1C |
| Continuous Discharge Rate | 3C | 2C |
| RT cycle | ≥7000cycles | ≥5000cycles |
| Item | Model | Cell | Rated Energy | Rated Voltage | Voltage Range | Max. Cont. Charging Power |
Peak Charging Power |
Max. Cont. Discharging Power |
Peak Discharging Power |
RT cycle |
|---|---|---|---|---|---|---|---|---|---|---|
| Parameters | C/29-87 | 19Ah | 29.1042Kwh | 510.6V | 372.6~579.6V | 87.3126Kw | 232.8336Kw | 87.3126Kw | 255.3Kw | ≥7000cycles |
| Parameters | C/42-64 | 53.5Ah | 42.7572Kwh | 399.6V | 291.6~453.6V | 64.1358Kw | 199.8Kw | 64.1358Kw | 199.8Kw | ≥5000cycles |
| Parameters | C/42-49 | 53.5Ah | 42.7572Kwh | 199.8V | 145.8~226.8V | 49.95Kw | 99.9Kw | 49.95Kw | 99.9Kw | ≥5000cycles |
| Parameters | C/41-38 | 53.5Ah | 41.5695Kwh | 155.4V | 113.4~176.4V | 38.85Kw | 77.7Kw | 38.85Kw | 77.7Kw | ≥5000cycles |
