Residential ESS

The residential ESS is a rechargeable energy storage solution designed for residential and light commercial use, featuring a compact design and flexible configuration for seamless integration with inverters. With a maximum discharging current of 200A and reliable operation in extreme temperatures as low as -30 C, it stands as a market-leading product for efficient load management.

Enquire Now
Residential ESS

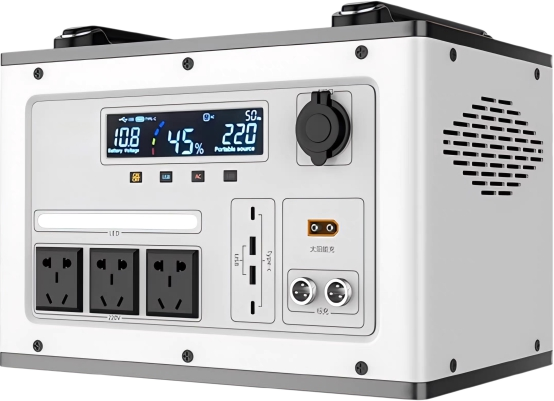

Power Bank



Light VP1000
Item Parameters
Cell LFP 314Ah
Energy 1280Wh
AC Output1 1500W, 230Vac, 50Hz
USB-A*2 5V/9V/12V, 4A, Max 20W
Type-C*1 5V/9V/12V, 4A, Max 20W
LED Lighting 1W
AC Input 1100W, 230Vac, 50Hz
PV Input 400W, 10~60Vdc
Charging Temperature 0~50℃
Discharging Temperature -10~50℃
Lifespan 6000 cycles/5 years, 70% SOH (25℃, 0.5C)
Weight 10kg
Certifications UN38.3, CE, 3C

Light VP2000
Item Parameters
Cell LFP 314Ah
Energy 2009.6Wh
AC Output2 1000W, 230Vac, 50Hz
USB-A*2 5V/9V/12V, 4A, Max 20W
Type-C*1 5V/9V/12V, 4A, Max 20W
LED Lighting 1W
AC Input 1000W, 230Vac, 50Hz
PV Input 500W, 12~60Vdc
Charging Temperature 0~50°C
Discharging Temperature -10~50°C
Lifespan 6000 cycles/5 years, 70% SOH (25°C, 0.5C)
Dimensions 327*204*273mm
Weight 18kg
Certifications UN38.3, CE, 3C





Power VP1500
Item Parameters
Cell LFP  50Ah
Energy 1280Wh
AC Output1 1500W, 230Vac, 50Hz
AC Peak Output 3000W(<=200ms), 230Vac, 50Hz
USB-A*2 5V/9V/12V, 4A, Max 20W
Type-C*1 5V/9V/12V, 4A, Max 20W
Car Charger Output Port 12V/120W
LED Lighting 1W
AC Input 1100W, 230Vac, 50Hz
PV Input 400W, 10~60Vdc
Charging Temperature 0~50°C
Discharging Temperature -10~50°C
Lifespan 6000 cycles/5 years, 70% SOH (25°C, 0.5C)
Weight 10kg
Certifications UN38.3, CE, 3C

Power VP2400
Item Parameters
Cell LFP  50Ah
Energy 2560Wh
AC Output2 2400W, 230Vac, 50Hz
AC Peak Output 3600W(<=200ms), 230Vac, 50Hz
USB-A*2 5V/9V/12V, 4A, Max 20W
Type-C*1 5V/9V/12V, 4A, Max 20W
Car Charger Output Port 12V/120W
LED Lighting 1W
AC Input 1800W, 230Vac, 50Hz
PV Input 1200W, 12~60Vdc
Charging Temperature 0~50℃
Discharging Temperature -10~50℃
Lifespan 6000 cycles/5 years, 70% SOH (25℃, 0.5C)
Weight 20kg
Certifications UN38.3, CE, 3C

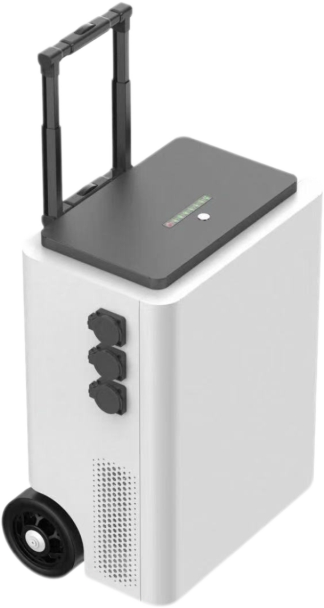

Trolley Power Bank








Power VP4000
Item Parameters
Cell LFP  280Ah
Energy 7168Wh
AC Output4 4000W, 230Vac, 50Hz
AC Peak Output 8000VA(400ms), 230Vac, 50Hz
USB-A*4 5V/9V/12V, 4A, Max 20W
Type-C*2 5V/9V/12V, 4A, Max 20W
Car Charger Output Port 12V/120W
LED Lighting 1W
AC Input 4000W, 230Vac, 50Hz
PV Input 6500W, 60~500Vdc
Charging Temperature 0~50°C
Discharging Temperature -10~50°C
Lifespan 6000 cycles/5 years, 70% SOH (25°C, 0.5C)
Weight 65kg
Certifications UN38.3, CE

Power VP6200
Item Parameters
Cell LFP  100Ah
Energy 5120Wh
AC Output4 6200W, 230Vac, 50Hz
AC Peak Output 12400VA(<=200ms), 230Vac, 50Hz
USB-A*2 5V/9V/12V, 4A, Max 20W
Type-C*1 5V/9V/12V, 4A, Max 20W
Car Charger Output Port 12V/120W
LED Lighting 1W
AC Input 6200W, 230Vac, 50Hz
PV Input 8500W, 12~60Vdc
Charging Temperature 0~50°C
Discharging Temperature -10~50°C
Lifespan 6000 cycles/5 years, 70% SOH (25°C, 0.5C)
Weight 55kg
Certifications UN38.3, CE

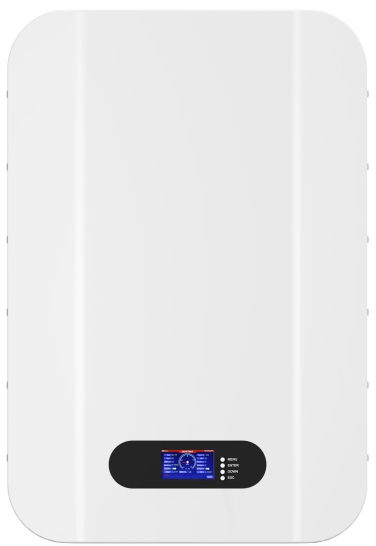

Power-Wall





Home VP48100
Item Parameters
Cell 100Ah
Energy 5120Wh
Rated Voltage 51.2V
Max Charging Voltage 56.8V
Max Charge/Discharge Current 100A
Discharge Cut-off Voltage 44.8V
Communication Solution RS485, CAN, USB
Cycle Life 6000 cycles (25°C±2°C, 0.2C/0.2C, 80%DOD)
Charging Temperature 0~55°C
Discharging Temperature -20~55°C
Dimensions 480*600*150mm
Weight 52kg
Installation Method Wall-mounted/floor-mounted
Certification UN38.3, CE, MSDS

Home VP48200
Item Parameters
Cell 200Ah
Energy 10240Wh
Rated Voltage 51.2V
Max Charging Voltage 56.8V
Max Charge/Discharge Current 200A
Discharge Cut-off Voltage 44.8V
Communication Solution RS485, CAN, USB
Cycle Life 6000 cycles (25°C±2°C, 0.2C/0.2C, 80%DOD)
Charging Temperature 0~55°C
Discharging Temperature -20~55°C
Dimensions 480*650*240mm
Weight 85kg
Installation Method Wall-mounted/floor-mounted
Certification UN38.3, CE, MSDS






Home VP48280
Item Parameters
Cell 280Ah
Energy 14336Wh
Rated Voltage 51.2V
Max Charging Voltage 56.8V
Max Charge/Discharge Current 200A
Discharge Cut-off Voltage 44.8V
Communication Solution RS485, CAN, USB
Cycle Life 6000 cycles (25°C±2°C, 0.2C/0.2C, 80%DOD)
Charging Temperature 0~55°C
Discharging Temperature -20~55°C
Dimensions 490*840*242mm
Weight 110kg
Installation Method Wall-mounted/floor-mounted
Certification UN38.3, CE, MSDS

Home VP48314
Item Parameters
Cell 314Ah
Energy 16076.8Wh
Rated Voltage 51.2V
Max Charging Voltage 56.8V
Max Charge/Discharge Current 200A
Discharge Cut-off Voltage 44.8V
Communication Solution RS485, CAN, USB
Cycle Life 6000 cycles (25°C±2°C, 0.2C/0.2C, 80%DOD)
Charging Temperature 0~55°C
Discharging Temperature -20~55°C
Dimensions 490*840*242mm
Weight 118kg
Installation Method Wall-mounted/floor-mounted
Certification UN38.3, CE, MSDS

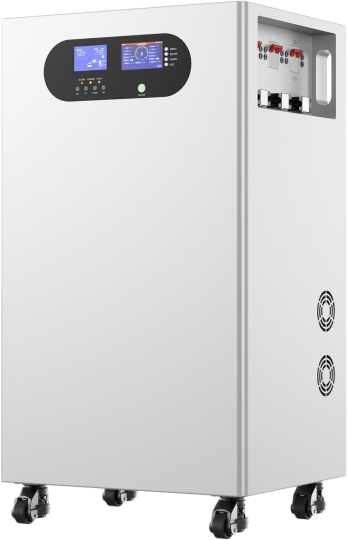

AC/DC integrated unit
Home VP14336
Item Parameters
Cell LFP  280Ah
Energy 14336Wh
AC Output 8600W, 230Vac, 50Hz
AC Peak Output 17200VA(<=200ms), 230Vac, 50Hz
USB-A*2 5V/9V/12V, 4A, Max 20W
Type-C*1 5V/9V/12V, 4A, Max 20W
Car Charger Output Port 12V/120W
LED Lighting 1W
AC Input 8600W, 230Vac, 50Hz
PV Input 2*6500W, 60~500Vdc
Charging Temperature 0~50°C
Discharging Temperature -10~50°C
Lifespan 6000 cycles/5 years, 70% SOH (25°C, 0.5C)
Weight 55kg
Certifications UN38.3, CE

Home VP16076
Item Parameters
Cell LFP  314Ah
Energy 16076Wh
AC Output 8600W, 230Vac, 50Hz
AC Peak Output 17200VA(<=200ms), 230Vac, 50Hz
USB-A*2 5V/9V/12V, 4A, Max 20W
Type-C*1 5V/9V/12V, 4A, Max 20W
Car Charger Output Port 12V/120W
LED Lighting 1W
AC Input 8600W, 230Vac, 50Hz
PV Input 2*6500W, 60~500Vdc
Charging Temperature 0~50°C
Discharging Temperature -10~50°C
Lifespan 6000 cycles/5 years, 70% SOH (25°C, 0.5C)
Weight 55kg
Certifications UN38.3, CE

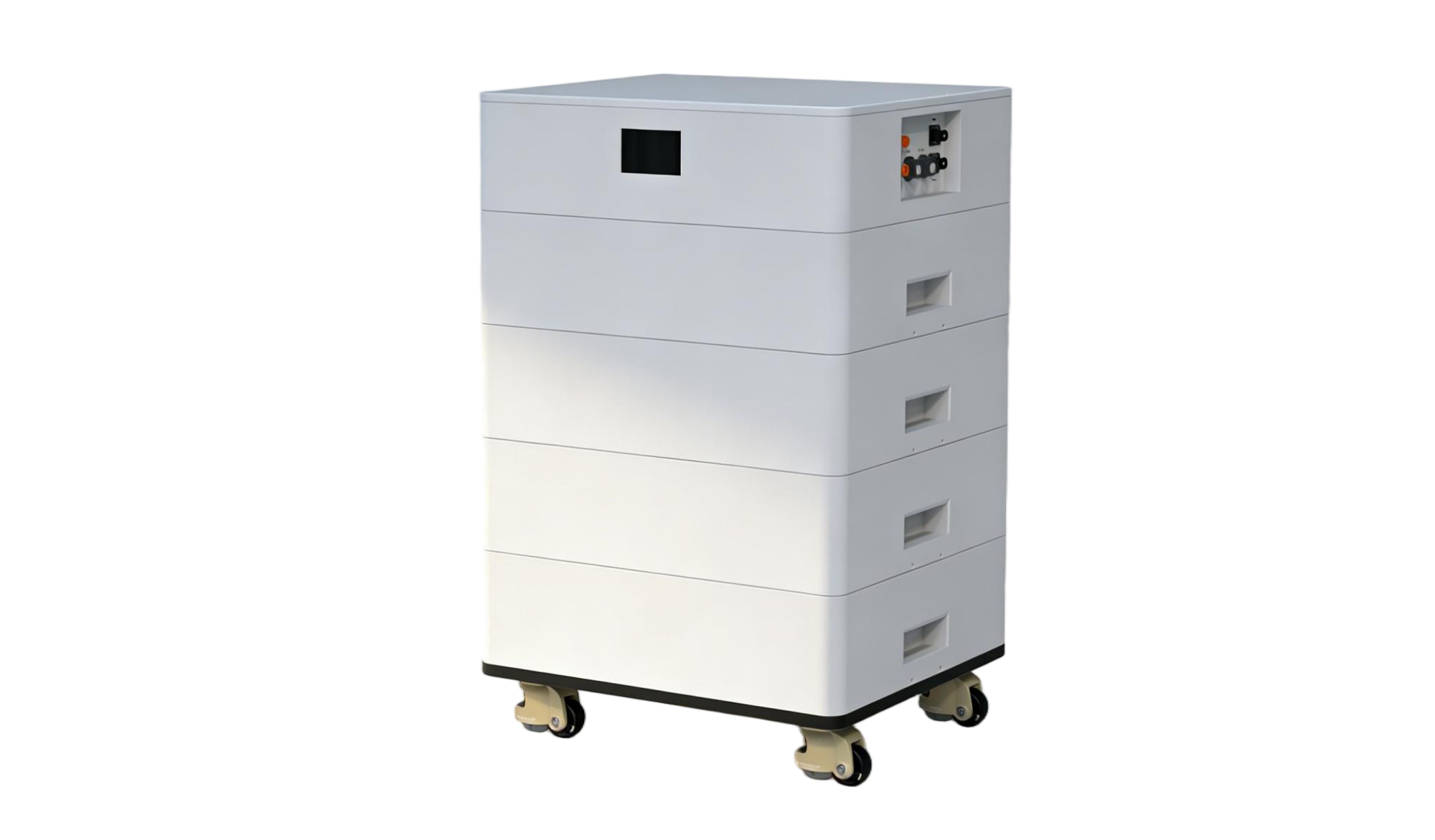

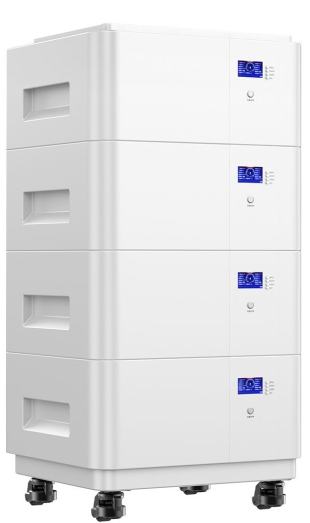

Home Stack48100
Item Parameters
Capacity 100Ah
Energy 5120Wh
Rated Voltage 51.2V
Max Charging Voltage 56.8V
Max Charge/Discharge Current 100A
Discharge Cut-off Voltage 44.8V
Communication Protocol RS485,CAN,USB
Cycle Life 6000 cycles (25℃±2℃,0.2C/0.2C,80%DOD)
Charging Temperature 0~55℃
Discharging Temperature -20~55℃
Dimension 480*600*150mm
Weight 52kg
Installation Method Stacked Installation
Certification UN38.3,CE,MSDS

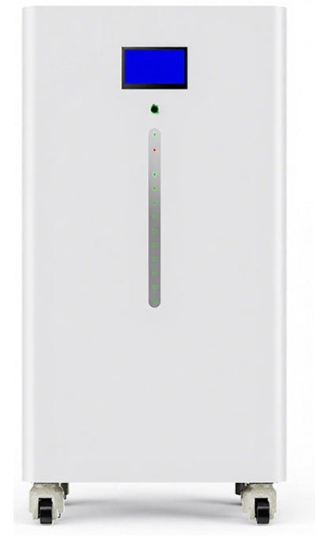

AC/DC integrated unit
Home VP5120
Item Parameters
Capacity 100Ah
Energy 5120Wh
AC Output 6200W, 230Vac, 50Hz
AC Peak Output 12400VA(<=200ms), 230Vac, 50Hz
USB-A*2 5V/9V/12V，4A，Max 20W
Type-C*1 5V/9V/12V，4A，Max 20W
Car Charger Output Port 12V/120W
LED Lighting 1W
AC Input 6200W, 230Vac, 50Hz
PV Input 8500W, 60~500Vdc
Charging Temperature 0~50℃
Discharging Temperature -10~50℃
Lifespan 6000 cycles/5 years, 70% SOH (25℃,0.5C)
Weight 55kg
Certification UN38.3, CE

Home VP10240
Item Parameters
Capacity 200Ah
Energy 10240Wh
AC Output 6200W, 230Vac, 50Hz
AC Peak Output 12400VA(<=200ms), 230Vac, 50Hz
USB-A*2 5V/9V/12V，4A，Max 20W
Type-C*1 5V/9V/12V，4A，Max 20W
Car Charger Output Port 12V/120W
LED Lighting 1W
AC Input 6200W, 230Vac, 50Hz
PV Input 8500W, 60~500Vdc
Charging Temperature 0~50℃
Discharging Temperature -10~50℃
Lifespan 6000 cycles/5 years, 70% SOH (25℃,0.5C)
Weight 55kg
Certification UN38.3, CE

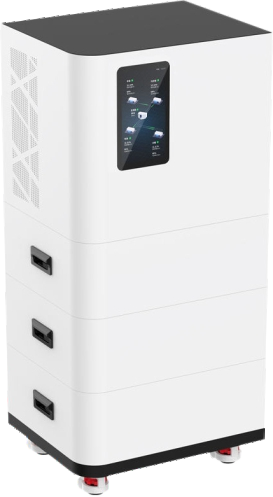

AC/DC integrated unit
Home StackH5000
Item Parameters
Capacity 314Ah
Energy 5024Wh
Module Output 350~450Vdc
Module Power 3000W
Module Series Number 4S
AC Output Power 3~6kW
AC Output Voltage 230Vac,50Hz
PV Input Power 6~12kW
Charging Temperature 0~50℃
Discharging Temperature -10~50℃
Module Weight 40kg
Inverter Weight 25kg
Certification UN38.3, CE

Home StackH8000
Item Parameters
Capacity 314Ah
Energy 8038Wh
Module Output 350~450Vdc
Module Power 3000W
Module Series Number 4S
AC Output Power 5~15kW
AC Output Voltage 230Vac,50Hz
PV Input Power 10~30kW
Charging Temperature 0~50℃
Discharging Temperature -10~50℃
Module Weight 58kg
Inverter Weight 35kg
Certification UN38.3, CE
